Stereo prism Binocular Power=6

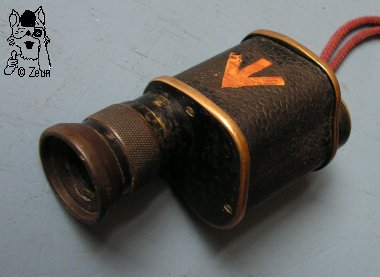

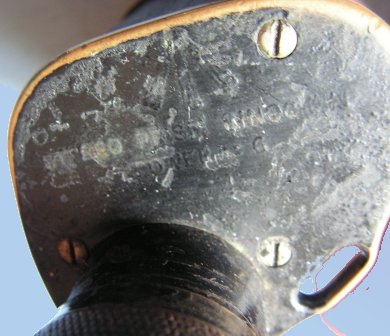

Ähnlich wie beim "Military Stereo 6x30" lässt sich annehmen, dass dieses Monokular entweder aus einem Doppelglas oder aufgrund von Materialmangel im Krieg so gefertigt wurde. Es zeigt keine Anzeichen einer abgesägten Brücke. Der obere Deckel ist mit "Stereo prism Binocular Power=6" beschriftet, so dass hier jedenfalls der Deckel eines Fernglases genutzt wurde. Die Bauweise mit einem Trageösenschlitz am überstehhenden Deckel wurde von Firmen wie Ross und Barr & Stroud benutzt, und deutet auf eine dortige Fabrikation hin. Der obere und untere Deckel sind mit dem "broad arrow" als Militärkennzeichnung graviert. Ebenso istdie Hartgummiummantelung mit einen dicken gelben "broad arrow" markiert.

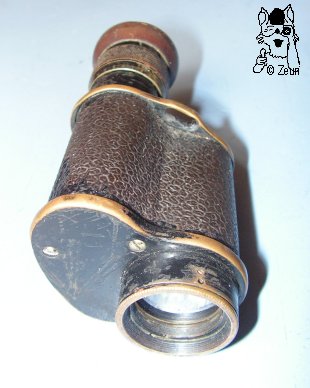

Das Glas ist ein 6x24 Monokular, besteht aus Messing und stammt aus der Zeit des 1. Weltkrieges. Die Augenmuschel am linksseitigen Okular ist aus dunkelbraunem Bakelit.
Mit 274g ist es recht schwer, während die Länge von 104-110 mm recht kompakt ist. Das Gehäuse misst ca. 50x50 bzw. 55x55mm in der Breite. Der Durchmesser des Okularstücks ist 24mm, der Augenmuschel 33mm, und an der Objektivfassung 31mm.
Similar to the "Military Stereo 6x30" one can assume that this monocular was either a half of a binocular or made as such due to lack of material during war times. There are no signs of a sawn off bridge. The top cover plate is marked "Stereo Prism Binocular Power=6", so that at least a cover plate from a binocular was used. The shape of the cover with a strap lug slot protruding from the plate was used by makers like Ross and Barr & Stroud, hinting a production by one of them. The top and bottom covers are marked with the "broad arrow" as military designation. So is the hard rubber covering of the body marked with a thick yellow "broad arrow".
The glass is a 6x24 monocular made of brass and dating from WWI period. The eyecup of the left-hand sided ocular is made of dark brwon Bakelite.
Being 274g the monocular is quite heavy, whereas its length of 104-110 mm is still compact. The housing measures c. 50x50 and 55x55mm. The ocular diameter is 24mm, the one of the eyecup 33mm, and the objective frame is 31mm in diameter.

Fotos: Zeun
