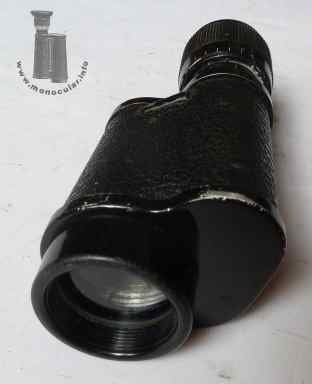

Manufrance 8x30 Monocular

Dieses französische 8x30 Monokular wurde für den Versandhandel "Manufrance" in Saint Etienne gefertigt. Es ist als "optique traitée" (vergütete Optik) am oberen Deckel markiert sowie mit einem fünfzackigen Stern. Das Glas hat eine 3/3 Kunststoffaugenmuschel und einen rundumlaufenden Dioptrienausgleich von 1-5 am rechtsseitigen Okular. Das Prismengehäuse hat eine Kunstlederummantelung, die Metallteile sind schwarz lackiert. Die Deckel haben keine Schrauben, sondern werden durch das 'Okularstück und die Plastikobjektivfassung gehalten.
Wie bei dem 12x40 Modell liegen zwei etwas unterschiedliche Deckelbeschriftungen vor.
This French 8x30 monocular was made for the mail trade company "Manufrance" in Saint Etienne. The top cover is also marked "optique traitée" (coated optics) as well as a a star with five rays. The 3/3 eyecup is made of plastic. The dioptre divisions run around the left-hand sided ocular and the lines are marked from 1 to 5. The prism housing is covered with synthetic leather; the metal parts are lacquered black. The cover plates have no screws, but are secured just by the eyepiece and the plastic and objective frame.
Like the 12x40 model the 8x30 is known with two slightly different markings on the top cover.

Das Monokular ist 131 - 143mm lang, das Gehäuse ist oben 57x57mm und unten 65x65mm breit, der Objektivtubus ist außen 50mm im Durchmesser. Das Gewicht ist 378g (beim 2. Exemplar 302g). The monocular is 131 - 143mm long, the housing measures 57x57mm at its top and 65x65mm at its bottom. The objective tube has a diameter of 50mm, the weight is 378g (2nd mdoel: 302g).

Fotos: Zeun
