E. Zion 6x24 Monokular

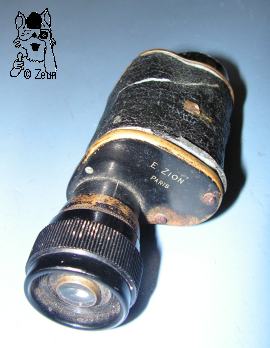

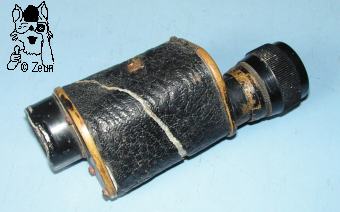

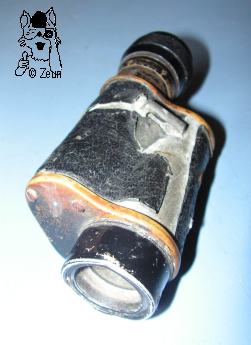

Das Porro-1-Monokular des Pariser Optikers (auch Kameras) Edmond Zion ist recht mitgenommen: die Objektivfassung sit eingebeult, die schwarze struktierte Papierummantelung gerissen und die Augenmuschel durch eine modernere Plastikaugenmuschel (evtl. Nachkriegsexemplar Krauss, Aquilius) ersetzt. Die Messingdeckel sind zum Teil noch schwarz lackiert, der obere ist mit "E. Zion Paris" beschriftet. Die Deckel sind dreifach verschraubt, das linksseitige Okular hat eine Dioptrienskala. Das Gehüuse hat eine eingegossene Trageriemenöse. The porro1 monocular made by the parisian optician Edmond Zion (also camera maker) is quite worn: the objective frame is dented, the black textured paper covering is torn, and the eyecup was replaced with a modern plastic eyecup (postwar Krauss or Auqilius type). The brass cover plates are still partly painted black, the upper one is marked "E. Zion Paris", both have three screws. The left-hand sided ocular has a dioptre scale. The body has a cast-in strap lug.

Das 6x24-Glas wiegt 288g, es ist 122-130mm lang und am Gehäuse oben 46x47mm und unten 49x51mm breit. Die Objektivfassung ist 33mm, das Okularstück 24mm, die Augenmuschel 34mm im Durchmesser. This 6x24 glass weighs 288g, it is 122-130nn in length and measures 46x47mm at the top of the body and 49x51mm at its bottom. The objective frame is 33mm, the eyepiece 24mm, the eyecup 34mm in diameter.

Fotos: Zeun
