Zeiss 6x24

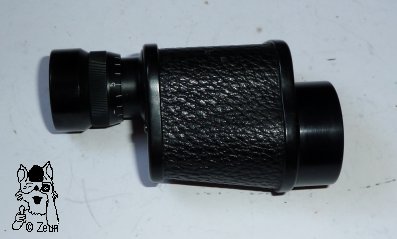

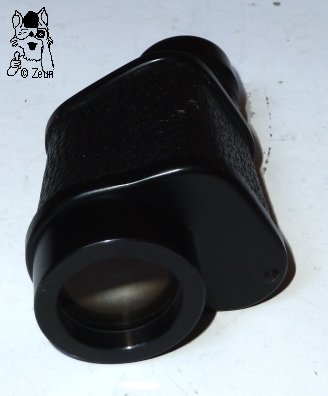

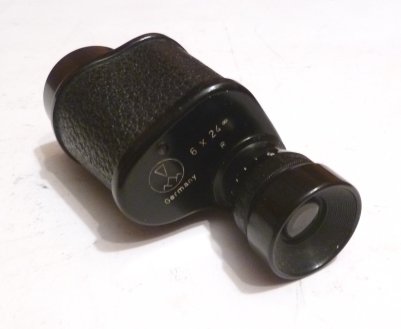

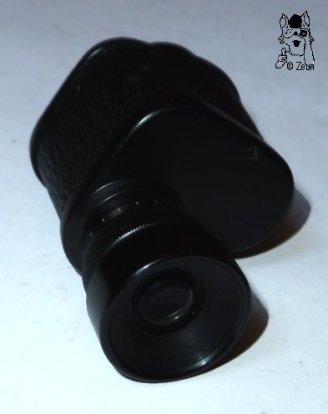

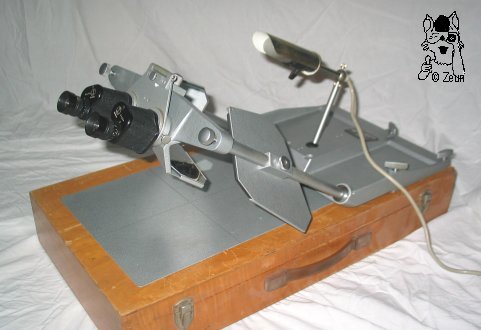

Dieses 6x24 Monokular mit magenta Vergütung ist in der Version mit rechtsetigem Okular unbeschriftet, das vorliegende Modell mit rechtseitigem Okular ist mit "6x24∞", darunter "R" (= rechts) gekennzeichnet - es trägt das "Aerotopo" Logo (darunter "Germany") von Zeiss Oberkochen und wird am Spiegel-Stereoskop genutzt. Jeweils zwei Monokulare ergeben ein binokulares Paar zur vergrößerten Ansicht auf die topografischen Luftbildaufnahmen. Die Bauweise mit einem geraden dickwandigem Objektivtubus, einer Kunstlederumamntelung und der Art des Okulars mit Plastik-Augenmuschel entspricht der der 4x24 Monokulare für das Zeiss Spiegelstereoskop (s. letztes Bild). Die schwarz lackierten Deckel sind einfach verschraubt. Die komplett umlaufende Dioptrienskala ist bei + und - 5 gekennzeichnet.
Das Monokular wiegt 133g. Es ist 83-90mm lang, das Gehäuse oben 41x41mm und unten 47x47mm breit. Der Objektivtubus ist 33,5mm im Durchmesser, der Okulartubus ist 20mm, der Fokussierungsring 26mm und die Augenmuschel 28mm im Durchmesser.
This 6x24 monocular with a magenta coating has got no markings on the model with a left-hand sided ocular, but the model with a righ-hand sided ocular is marked "6x24∞", below an "R" (= right) - it also bears the "Aerotopo" logo (below this "Germany") by Zeiss Oberkochen. It is used with the "Aerotopo" mirror stereoscope. Two monoculars make up a pair for a magnified view of aerial photos. Its construction with a straight and thick-walled objective tube, a leatherette covering, as well as the kind of eyepiece with a plastic eyecup is identical to that of the 4x24 monoculars for the Zeiss mirror stereoscope (see lst pic.). The black painted covers have one screw . The full dioptre scale is marked at +5 and -5.
The monocular weighs 133g. It is 83-90mm long. The housing measures 41x41mm at its top and 47x47mm at its bottom. The objective tube is 33.5mm in diameter, the ocular tube is 20mm, the focusing ring 26mm and the eyecup 28mm in diameter.
