Optimar 7x44

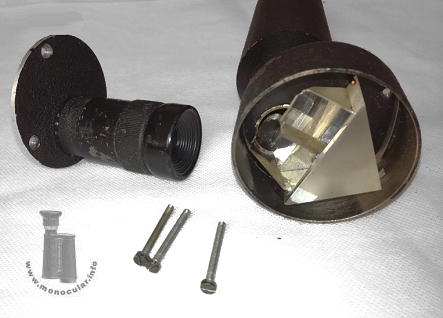

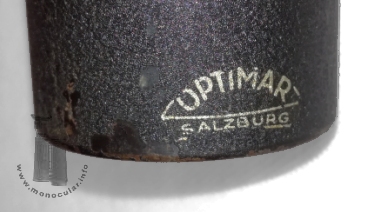

Von dem Salzburger Kamerahersteller Optimar stammt dieses seltene Monokuar mit längerem Objektivtubus und einem Porro-2-Prismensystem. Die optischen Spezifikationen lassen sich als 7x44 messen (vgl. 8x42 bei fernglasmuseum.at). Ob es eine Sonderanfertigung des Hauses oder eine Kleinserie war, ist nicht bekannt. Die Fertigung müsste zwischen 1947 und 1962 (Gründung der Firma bis zur Umbenennung) liegen. Das Aluminiumgehäuse ist mit einem Rauhlack lackiert, die Augenmuschel ist aus Kunststoff, die Dioptrienkennzeichnung ist lediglich Null, Plus und Minus, und am Gehäuse ist ein aufgeschraubter Stativadapter. Am Objektivende ist am Rand die Beschriftung "Optimar Salzburg" This rare monocular was amde by the camera maker Optimar in Salzburg (AT). It has a long slender objective tube and a Porro II prism system. Wehn measuring the specifications are 7x44 (cf. 8x42 at fernglasmuseum.at). It is unknowns whether this is a signle special cosntruction or was made as a small series. Yet, it must date from between 1947 and 1962 (foundation year until year of changing name). The aluminium hosuing is covered with crinkle paint, the eyecup is made of plastic, and the dioptre scale is only marked zero, plus and minus. There is a screwed-on tripod adaptor on the tube. On the end of the straight objective tube "Optimar Slazburg" is inscribed.

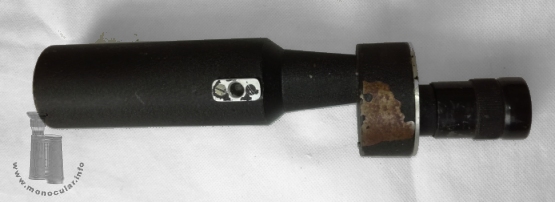

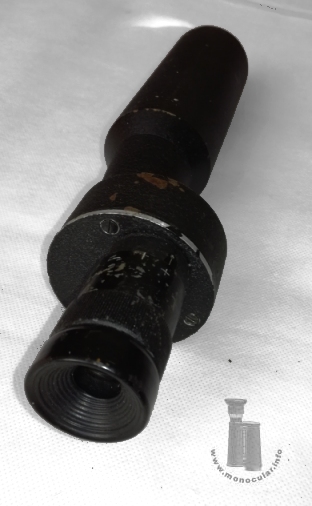

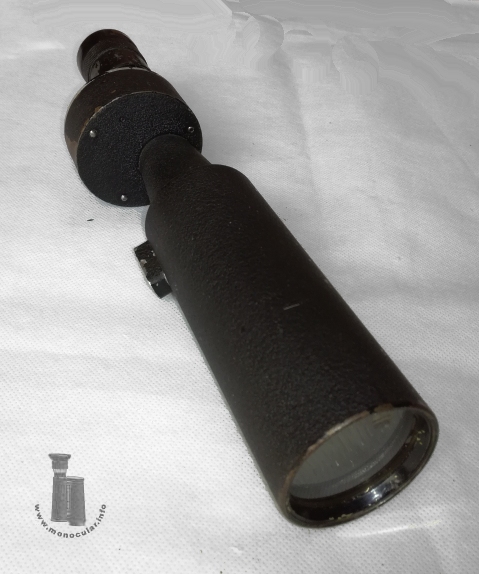

Das 684g schwere Optimar ist 265-277mm lang, der 14cm lange Tubus 52mm und das runde PRismengehäuse 63mm im Durchmesser. Der kurze konische Tubusansatz ist 28-37mm, der Okulartubus 29mm, der Fokussierungsring 34mm und die Augenmuschel 33mm im Durchmesser. The Optimar weighing 684g is 265-277mm long, the 14cm long tube is 52mm and the round prism box 63mm in diameter. The shor conical tube is 28-37mm, the eyepeice 29mm, the focusing part 34mm, and the eyecup 33mm in diameter.

Fotos: Zeun
