Kershaw 6x(24)

Dieses Kershaw 6x hat einen effektiven Objektivdurchmesser von 23mm, ist aber eine Modellvariante des 6x24 Typs aus den Jahren um den 1. Weltkrieg.

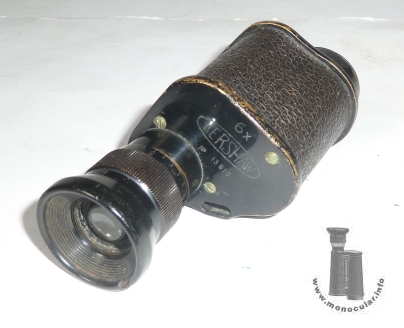

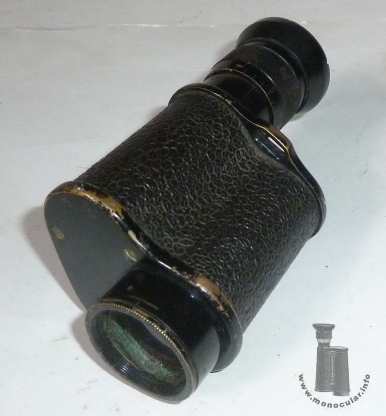

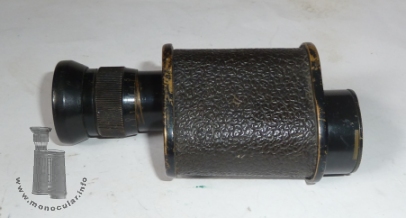

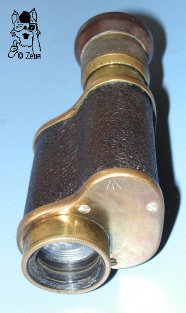

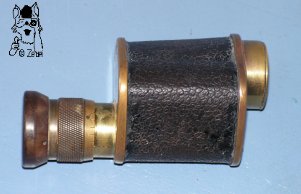

Das Monokular mit Nr. 4539 ist aus blankem Messing – Spuren einer ehemaligen Lackierung sind nicht (mehr) zu erkennen – und hat eine strukturierte Hartgummiummantelung sowie eine Bakelitaugenmuschel. Das Gehäuse hat keine Trageriemenöse. Hingegen hat ein Exemplar mit Nr. 13810 schwarz lakierte Messingdeckel (dreifach verschraubt) und eine Trageriemenöse integriert am überstehenden Teil des oberen Deckels.
Der Deckel des Modells mit rechtssetigen Okularstück ist mit dem Kershaw-Logo, "6x" und sowohl am Rand als auch unter dem Logo mit der Nr. 4539 als Gravur beschriftet. Am unteren Deckel ist der "broad arrow" eingraviert. Der Deckel des Modells mit linksseitigem Okular ist am oberen Deckel ebenfalls mit dem Kershaw Logo und 6x sowie der Seriennummer beschriftet.
This Kershaw 6x has a real aperture of 23mm, although it is a 6x24 model dating from abour WWI.
The monocular with number 4539 is made of polished brass – remains of a former lacquering cannot be detected (any more). The housing has a sort of strucrtured hard rubber coating. The eyecup is made of Bakelite. There is no strap lug. Contrary, the model with number 13810 has black lacquered cover plates having three screws and comes with a strap luig integrated into the protruding top cover plate.
The markings on the top cover of the model with a right-hand sided eyepiece are the Kershaw logo, "6x" and No. 4539, engraved at the rim and below the logo. The bottom cover is marked with a "broad arrow". The top cover of the mdoel with its left-hand sided eyepiece also bears the Kershaw logo, "6x", and the serial number on the top cover.

Das Monokular wiegt 262g (264g bei #13810), ist zwischen 103 und 112mm lang, das Gehäuse oben 47x48mm und unten 52x53mm breit. Der Durchmesser der Objektivfassung ist 31,2 mm und des Okulars 28,5mm The monocular weighs 262g (#13810 264g), measures between 103mm and 112mm, and the housing is 47x48mm at its top and 52x53 at its bottom in width. The objective frame is 31.2 and the ocular is 28.5mm in diameter.

Fotos: Zeun
