Hensoldt Dialyt Vergr.= 8x

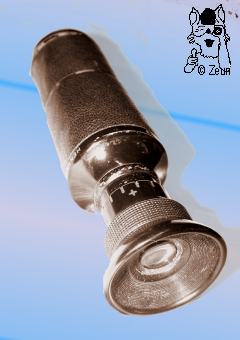

Das hier abgebildete Dialyt 8x ist ein sehr frühes Dialyt-Glas um 1905-08. Die Modellreihe ohne Trageriemenösen gab es mit 6-, 8- und 12-facher Vergrößerung und jeweils einer 26 mm Objetivlinse. Am kegelförmigen Okulardeckelrand ist es mit "Hensoldt Wetzlar D.R.P. Vergr=8x" sowie gegenüberliegend mit der Nummer "59419" beschriftet. Die Objektivlinse ist 26mm im Durchmesser.
Es hat einen geraden zylindrischen Haupt-Tubus und eine 2/3 Hartgummiaugenmuschel. Der Dioptrienausgleich ist mit Strichen und ansonsten nur mit +, - und 0 markiert. Das Objektivende ähnelt noch der Konstruktionsweise der Hensoldt Pentaprismengläser (vgl. a. Abb. 56 bei H. Seeger "Feldstecher ...", S. 51).
This Dialyt 8x is an early Dialyt glass from around 1905/08. This model series without strap lugs was issued in 6, 8 and 12 times power each with a 26 mm objective lens. On the rim of the conical ocular plate, the inscriptions are: "Hensoldt Wetzlar D.R.P. Vergr=8x" as well as number 59419 on the opposite side. The objective lens has a 26mm diameter.
It has a straight cylindrical main tube and a Ebonite eye-cup. The dioptre adjustment is marked with lines, and only with +, - and 0. The objective end resembles the construction of the Hensoldt penta prism glasses (also cf. fig. 56 in H. Seeger "Feldstecher ...", S. 51).

Das Monokular ist 129 - 134 mm lang, mit einem Durchmesser von 34 mm am Prismentubus und 35 mm an der Objektivfassung, 19 mm beim Okulartubus, 22 mm am Dioptrienring, 25 mm am Fokusseriungsring und 29 mm bei der Augenmuschel. Der Objekivtubus verbreitert sich minimal von 32,5 auf 35 mm. Es wiegt 133 g ohne das passende runde Lederfutteral, welches 53 g wiegt. The monocular is 129 - 134m long. The prism housing tube is 34 mm, and 35 mm in diamter at the objective frame. The eyepiece is 19 mm, the dioptre ring 22 mm, the focusing ring 25 mm, and the eyecup 29 mm in diameter. The objective tube slightly increases from 32.5 to 35 mm in diameter. The monocular weighs 133 g without the fitting leather case which itself weighs 53 g.
