Carl Zeiss 8x60H

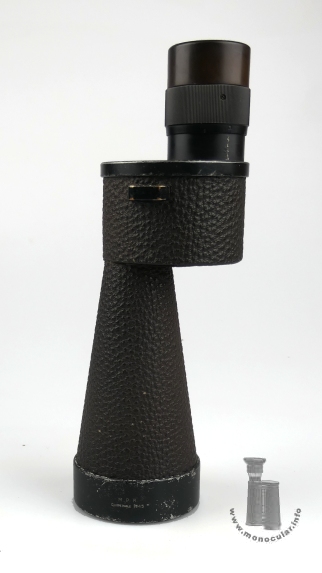

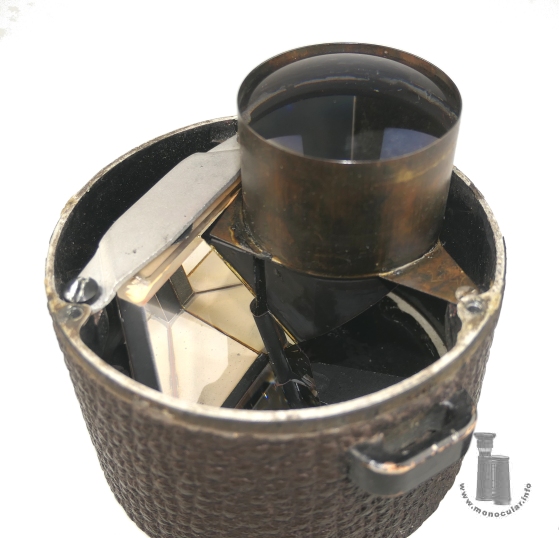

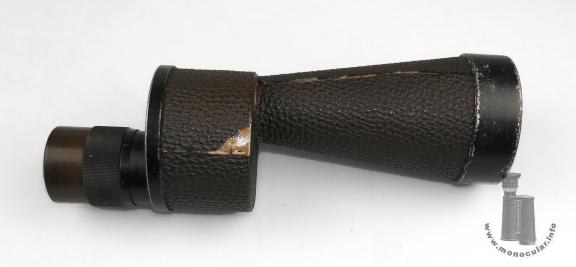

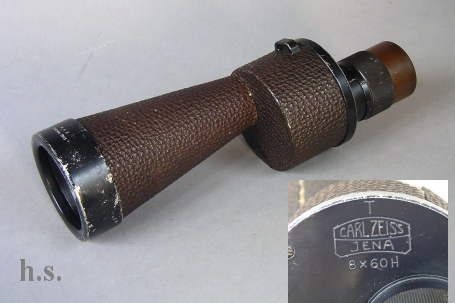

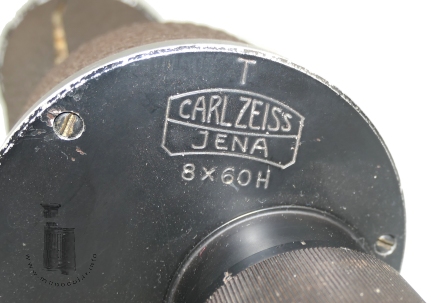

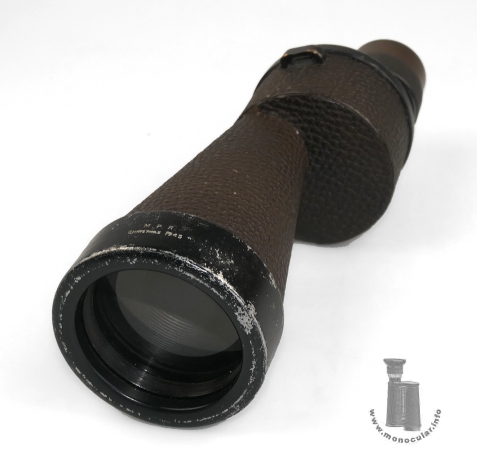

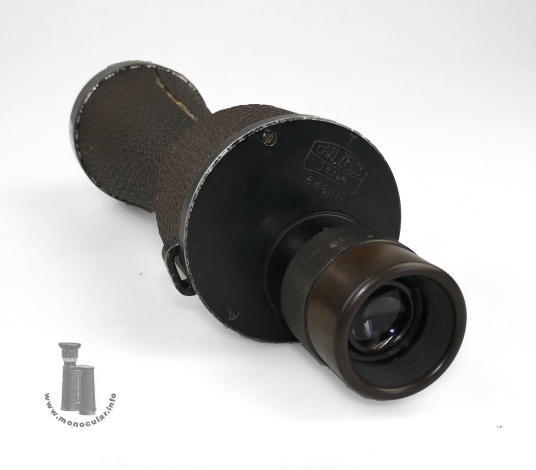

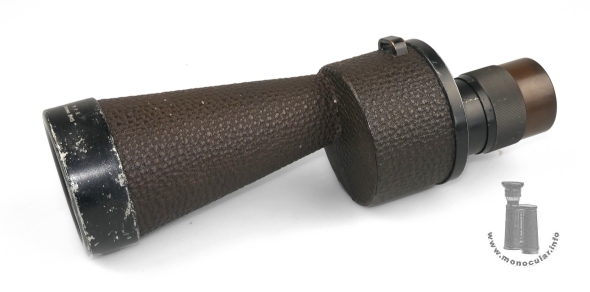

Ein seltenes Exemplar des meist militärischen 8x60H Fernglases von Zeiss ist dies 8x60H Monokular. Es hat keine Seriennummer ist aber ansonsten am Deckel vollständig beschriftet. Außer mit dem Logo und der Modellbezeichnung ist es mit einem "T" für den damals nur für militärishce Gläser genutzten T-Belag beschriftet. In seiner Form entspricht es anderen Porro-2-Modellen mit einem runden Prismengehäuse und einem konischen Objektivtubus. Die Kennzeichnung "H" steht für Helligkeit, was in der Zeiss-Modellserie auch durch eine an das Porro-2-System zementierte Bildfeldlinse herrührte. Die Bauform ist die 1. Ausführung des 8x60H-Modells.

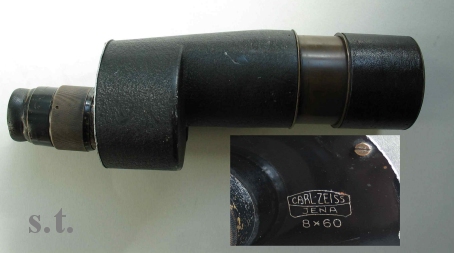

Ob die zweite hier gezeigte 8x60 Variante ein orignäres Monokular oder nur ein halbes Militärfernglas ist, bleibt ungeklärt. Das Monokular hat den dicken Objektivtubus mit einer Sonnenblende wie die 1. klassischen 8x60 Dienstgläser.
A rare specimen of the mostly military 8x60H binoculars by Zeiss is this 8x60H monocular. It has no serial number, but all other necessary markings. Besides the logo and the model specifiactions, it is engraved with a "T" for the T-coating that was used for military optics at that time. Its design resembles that of other porro 2 glasses with a round prism-hosuing and a slender conical objective tube. The H designation stands for "Helligkeit" (= illumination) which was produced among other things by the field-lens cemented to the prism system for several Zeiss models. The design is the first model make of the 8x60H models.
Whether the second 8x60 model shown here is an original monocualr or a bincoular half remains uncertain. This monocular has the thick objective tube with an extendable sunshade like the classical first 8x60 service glasses.

Fotos: H. Seeger, S. Tomlinson
