Broadhurst, Clarkson & Co. 6x16

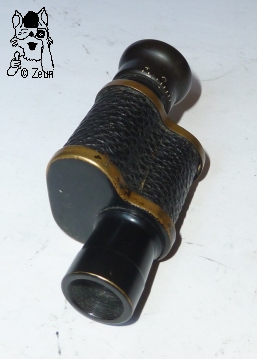

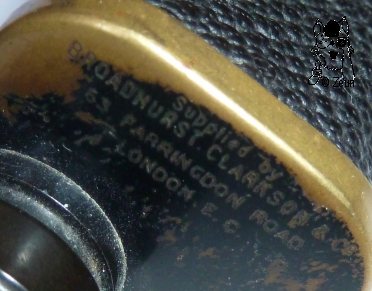

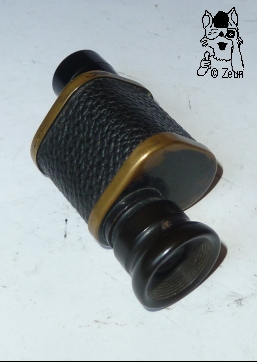

Dieses kleine 6x16 Monokular wurde von Broadhurst & Clarkson Co in London vertrieben. So ist der obere Deckel mit "Supplied by BROADHURST & CLARKSON Co. 63 Farringdon Road London E.C." gekennzeichnet. Der untere Deckel ist mit "6x" beschriftet". Beide Deckel sind aus schwarz lackiertem Messing. Das monokular hat eine schwarze Hartgummiuummantelung und keine Trageriemenöse. Das Objektiv ist in einem schmalen konsichen Objektivhtubus montiert. Das linksseitige Okular hat eine 3/3 Bakelitaugenmuschel mit Dioptrienskala. This little 6x16 monocular was distributed by Broadhurst, Clarkson & Co.. So, the upper cover plate is marked "Supplied by BROADHURST & CLARKSON Co. 63 Farringdon Road London E.C.". The bottom cover is marked "6x". Both covers are made of black painted brass. The hosuing is covered with black ebonite and has no strap lug. The objective lens is moiunted in a slender conical objective tube The left-hand sided eyepiece has 3/3 Bakelite eyecup with a dioptre scale.

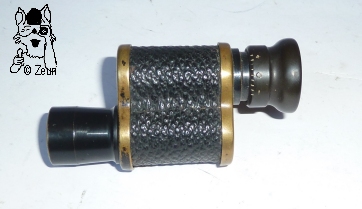

Das Monokular ist 85-87mm lang, das Gehäuse oben 36x36mm und unten 37x37mm breit. Der Objektivtubus verbreitert sich von 18mm auf 21mm im Durchmesser. Das Okular misst 17mm, der Fokussierungsring 22mm und die Augenmsuchel 26mm im Durchmesser. Das 6x16 wiegt 113g. The monocular is 85-87mm long, the body 36x36mm wide at iots top and 37x37mm wide at its bottom. The objective tube increases form 18mm to 21mm in diameter. The eyepiece is 17mm, the focusing ring 22mm, and the eyecup 26mm in diameter. The 6x16 weighs 113g.

Fotos: Zeun
