Aitchison 25x36

Eine weitere Version der Aitchison Monokulare mit Irisblende hat ein sehr hohe 25fache Vergrößerung. Wiederum ist die Objektivlinse nur 36mm im Durchmesser. Für damalige Zeit ist es eine handliches Spektiv.

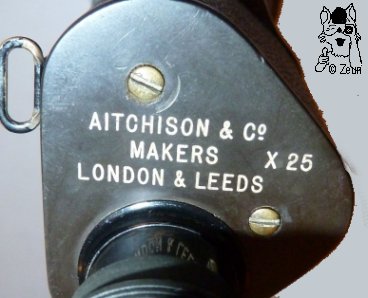

Der obere Deckel ist aus dunkelbraunem Hartgummi und mit "Aitchison & Co. Makers x25 London & Leeds" beschriftet. Die Unterseite des Aluminiumgehäuses trägt die Nummer "337". Die Baumerkmale sind wie bei den anderen Aitchison Modellen.
Another version of the Aitchison monoculars with iris diaphragm comes with a rather high magnification of 25 times. Again the objective lens is 36mm in diameter and the construction characteristics are the same like the other models have. It is a rather handy spotting scope for that time.
The hard rubber top cover plate is inscribed "AITCHISON & CO. MAKERS x25 LONDON & LEEDS". The bottom of the aluminium housing is marked number 337.

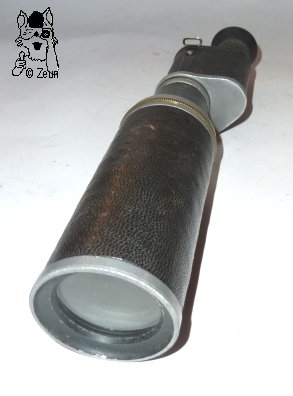

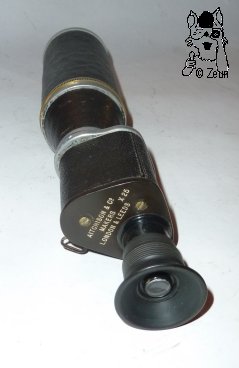

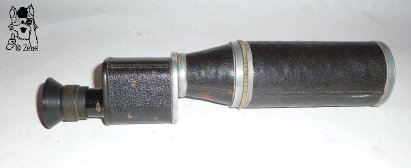

Der Okulartubus ist 19mm im Durchmesser, die Augenmuschel 23,5mm. Die Seiten des 49mm lagnen Prismengehäuses sind 44mm bzw. 51mm breit. Der konische Tubus verbreitert sich von 32mm auf 49mm und ist 43mm lang. Der gerade Objektivtubus misst 114mm bei einem Durchmesser von ebenfalls 49mm. Das 25x Modell ist 23,5 cm bis 24,5 cm lang. Dieses Modell wiegt 370g. The eyepiece tube is 19mm in diameter, the eyecup 23.5mm. The sides of the 49mm long housing measure 44x44x51mm. Again, the bottom plate measures 46x49x53mm, and the conical tube increases from 32 to 49mm in diameter, being 43mm long. The straight objective tube of the 25x model is 114mm long, having a 49mm diameter. Overall length is 23.5 to 24.5cm. This mdoel weighs 370g.

Fotos: Zeun
