Leitz 12x60 Mondoce

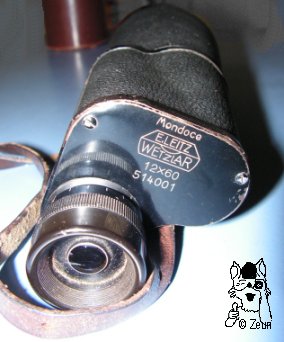

Das Leitz 12x60 hat die Modellbezeichnung "Mondoce". Die Seriennummer lautet 514001; das Glas wurde zwischen 1939 und 1962 hergestellt. Es hat einen passenden Lederköcher mit der Stempelung des Firmenlogos und "Germany" am Köcherboden. Außerdem gibt es einen Tageriemen.
Das Monokular ist aus Aluminium mit einer Rauhlack-Lackierung.
The Leitz 12x60 has the model name "Mondoce". Its serial number is 514001; the glass was made between 1939 and 1962. It comes with a matching case stamped with the company logo and "Germany" at its bottom. There also is a carrying strap.
The monocular is made of aluminium with a rough paint covering.

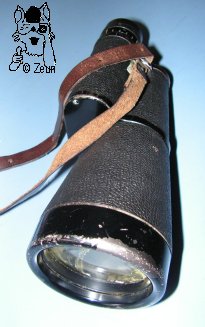

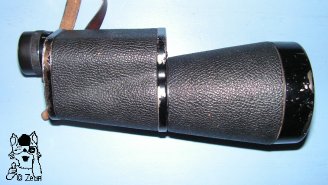

Das Sehfeld müsste ca. 75m wie beim binokularen Pendant sein. Mit Trageriemen wiegt es 586g. Je nach Einstellung des Dioptrienausgleichs (markiert +/5, ggf. bis -7 und +10) ist es 20,5cm bis 21,1cm lang. Dabei misst der konische Objektivtubus 95mm – der Tubus ist am Ansatz 53mm am Objektiv 75mm im Durchmesser. Das Okular hat einen Durchmesser von 34mm. Das Prismengehäuse ist 84mm hoch und 60x60mm oben bzw. 67x70mm unten breit. The field of view should be 75m (75y) as the one of the binocular version. It weighs 586g with the strap. Depending on dioptre adjustment (marked from + to - 5, but probably ranging from -7 to +10) it is 20.5cm to 21.1.cm in length. The conical objective tube itself already measures 95mm – being 53mm at its start and 75mm in diameter at its objective end. The ocular's diameter is 34mm. The prism body is 84mm tall and 60x60mm at the top and 67x70mm at the bottom in width.

<

/p>

Fotos: Zeun
