Greenkat 8x50 Monocular

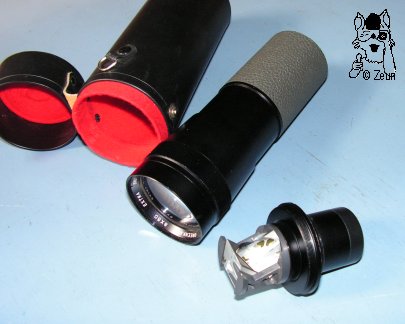

Das Greenkat 8x50 entspricht dem Specwell 8x50, sowie von Walters und anderen zuvor (s. Eschenbach 8x50 und als Binox 8x50 mit Stativgewinde) vertriebenen. Alle wurden in Japan (vermutlich von Specwell) hergestellt. Bis auf das Gewinde am Okular zur Anbringung eines Kamera-Adapterrings und der Riffelung am Objektoivtubus, mit dem sich bis in die Nähe fokussieren lässt, sind die Exemplare identisch. Das 8x50 hat ein großes Schmidt-Pechan-Prismensystem (s. Foto).
Es wiegt 406g, ist zwischen 178 und 218mm lang. Am Objektivtubus beträgtr der Durchmesser 60mm, am Haupttubs 51mm und am Okulartubus 36mm.
The Greenkat 8x50 is identical to the Specwell 8x50, the 8x50 by Walters and those distributed before by Eschenbach and as Binox 8x50 with a tripod thread. All models were made in Japan, probably all by Specwell. The only difference are a another thread near the ocular to fix a camera addapter and a different knurling at the objective focuisng tube. The monocular hs a big Schmidt-pechan-prism (s. picture).
The 8x50 weighs 406g, measures between 178 and 218 mm in length, and has a diameter of 60mm at the objective end, of 51mm at the main tube, and finally only 36mm diameter at the eyepiece.

Fotos: Zeun
