G. Fournier 8x18

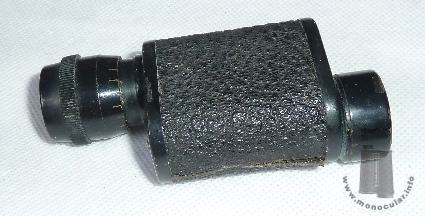

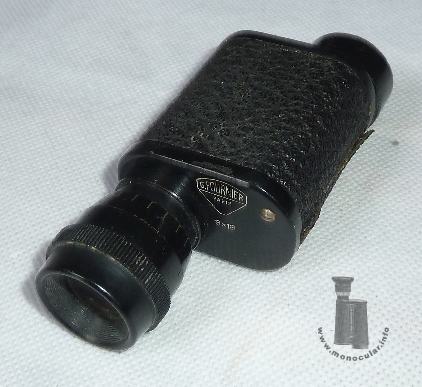

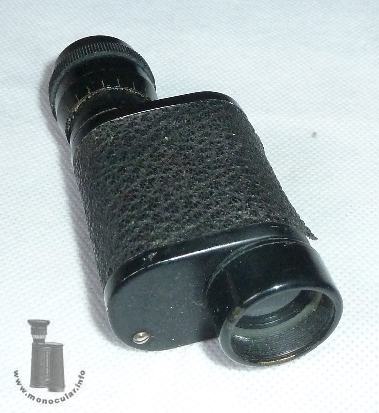

Das 8x18 Porro-1-Monokular - sozusagen der größere Bruder des 6x15 - hat eine blaue Vergütung und wurde somit nach dem 2. WK gefertigt. Es hat eine 2/3 Kunststoffaugenmuschel und ein eine unbeschrifteten Dioptrienskala. Das kastenförmige Gehäuse hat eine Kunstlederummantelung. Die schwarz lackierten Deckel sind einfach verschraubt; der obere ist mit dem Firmenlogo und optischen Werten gekennzeichnet. The 8x18 Porro 1 monocular - the 6x15's bigger brother - has blue coated optics, hence was made after WWII. It has a plastic 2/3 eyecup and an unmarked dioptre scale. The box shaped housing has a leatherette covering. The black lacquered cover paltes have one screw. The top cover is marked with the company's logo and the optical data.

Das 6x18 ist 90-95mm lang, das Gehäuse ist 43x19x52mm groß. Die Objektivfassung misst 25mm, das Okular 20mm, der Fokussierungsring 27mm und die Augenmuschel 25mm im Durchmesser. Das Glas wiegt 186g. The 6x18 is 90-95mm long, the housing measures 43x19x52mm. The objective frame is 25mm, the eyepiece 20mm, the focusing ring 27mm, and the eyecup 25mm in diameter.The glass weighs 186g

Fotos: Zeun
